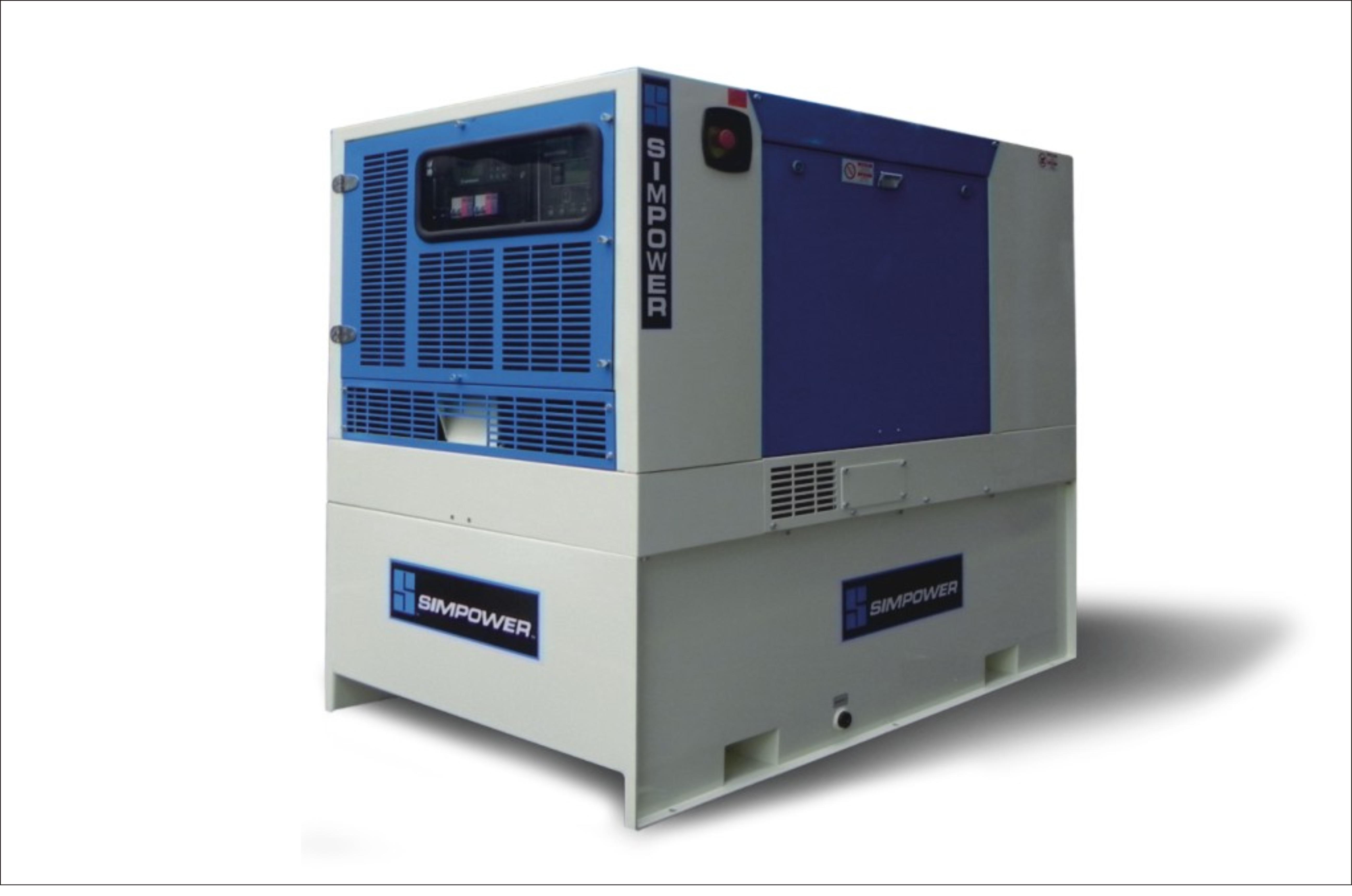

SIMPSON Variable Frequency DC generators
<
>

1、Simpson hybrid power intelligent control system consist of the hybrid power adaptive ATS system(no mechanical switch), the intelligent multi-power input management system and the DC/DC power conversion system or the DC/AC inverter system.

2、 The system can be customized per user applications, able to access to mains, traditional generator or DC inverter generators and solar power array (or wind power), to form an adaptive intelligent hybrid power system together with the batteries.

3、 The system uses the DC high voltage bus (240360Vdc) parallel mode, providing the stable DC or AC power supply for customer through the DC/DC or DC/AC transform system.

4、Prioritized power source connection control: capable of making smart connections to all available power sources in this system, prioritizing connection to solar mains or starting generators according to battery level and status.

5、Control function of intelligent DC inverter generator: Automatically control and track the speed of generators at the maximum power output upon available loads to ensure the generator working at fuel saving mode. For a dual standby system, it can be realized by automatically switching between two gensets or in generator and electric hybrid mode.

6、Complete battery intelligent management function

7、Intelligent communication function: the main controller can communicate with each function module of this system, collecting the electrical parameters and making the corresponding intelligent controls. The system comes with a remote monitoring interface with upstream units to realize dynamic ring monitoring and control.


机组参数

Simpson直流柴油发电机组综合数据表

机组型号

SP48100D-PS

SP48150D-PSS

SP48200D-PSS

SP48300D-PS

尺寸(长×宽×高)

  1200×660×1257

   1200×790×1406

   1200×790×1406

   1500×900×1500

备用功率

5.4KW

8.5KW

11KW

15KW

常用功率

5KW

7.5KW

10KW

13.5KW

重量(kg)

276

330

335

552

油箱容积(L)

300

 300

300

300

发动机

402D-05

R2V870

R2V870

403D-11

发动机生产商

Perkins

PU SHENG

PU SHENG

Perkins

缸数

2

2

2

3

冲程

4

4

4

4

气方式

进气方式

缸径/行程

67×72mm

88×72mm

88×72mm

77×81mm

最大功率@3000

6.8kwm

13.5kwm

13.5kwm

18.1kwm

发电机

6KW

10KW

12KW

15KW

励磁系

永磁

电压

43400V

绝缘

H

IP23

工作温度

70

效率

90

极数

36

36

36

36
