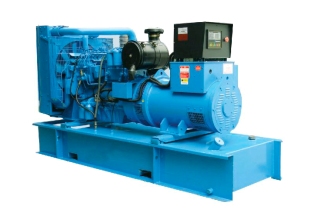

SIMPSON- Cummins Series
<
>

Main Features

Lower fuel consumption

Same design and manufacture workmanship as US Cummins, it has lower fuel consumption among the manufacturers of this range.

Outstanding reliability

The design of key components reserve adequate safety margin. The strength exceeds the similar engines by 30%, longer engine life span.

Lower service and maintenance cost

Less amount of accessories and lower failure rate ensure the general service and maintenance cost at the minimum. The service cost can be saved by up to 50% in comparison to manufacturers of the same range engine.

Excellent cold start capability

The air intake preheating device and the high power starter improve the cold start performance of engine.

Excellent performance and design advantages

       The advanced design maximize the engine power output up to 27.0kW/L(small specific weight ratio).


机组参数

   机 组 型 号

    备 用 功 率

  (kW/kVA)

    发 动 机 型 号

   机 组 尺 寸 (mm)

(长×宽×高)

     机 组 数 据

   SP0022D-C

22/27

   4B3.9-G1(G2)

    1800×7410×1380

SP0022D-C.pdf

SP0026D-C

26/33

4BT3.9-G1(G2)

1800×7410×1380

SP0026D-C.pdf

SP0033D-C

33/41

4BT3.9-G1(G2)

1800×7410×1380

SP0033D-C.pdf

SP0044D-C

44/55

4BTA3.9-G2

1880×750×1520

SP0044D-C.pdf

SP0050D-C

50/63

4BTA3.9-G2

1880×750×1520

SP0050D-C.pdf

SP0060D-C

60/75

6BT5.9-G1(G2)

2150×840×1400

SP0060D-C.pdf

SP0070D-C

70/88

6BT5.9-G1(G2)

2150×840×1400

SP0070D-C.pdf

SP0080D-C

80/100

6BT5.9-G1(G2)

2150×840×1400

SP0080D-C.pdf

SP0100D-C

100/125

6BTA5.9-G2

2150×840×1400

SP0100D-C.pdf

SP0108D-C

108/135

6BTA5.9-G2

2150×840×1400

SP0108D-C.pdf

SP0120D-C

120/150

6BTAA5.9-G2

2260×860×1450

SP0120D-C.pdf

SP0132D-C

132/165

6CTA8.3-G2

2300×860×1560

SP0132D-C.pdf

SP0165D-C

165/206

6CTA8.3-G2

2300×860×1560

SP0165D-C.pdf

SP0176D-C

176/220

6CTAA8.3-G2

2300×860×1560

SP0176D-C.pdf

SP0188D-C

188/235

 6CTAA8.3-G2

2300×860×1560

SP0188D-C.pdf

SP0220D-C

220/275

 6LTAA8.9-G2

2530×955×1603

SP0220D-C.pdf

SP0250D-C

250/313

QSM11-G2

2860×1050×1900

SP0250D-C.pdf

SP0275D-C

275/344

QSM11-G2

2860×1050×1900

SP0275D-C.pdf

SP0300D-C

300/375

QSM11-G2

2860×1050×1900

SP0300D-C.pdf

SP0330D-C

330/413

QSZ13-G2

3410×1230×1920

SP0330D-C.pdf

SP0400D-C

400/500

QSZ13-G2

3410×1230×1920

SP0400D-C.pdf

SP0440D-C

440/550

QSZ13-G3

3410×1230×1920

SP0440D-C.pdf
